New GBA Laminated HD LCD IPS Backlight Screen Mod Kit V5 + Zelda Series Customized Housing Case Shells, 720×480 Retro Pixel 9?to 1 Display Glass Screen Lens OSD Menu 15 Adjustable High Brightnes Full Set Accessories

V5 Laminated 720×480 Retro Pixel IPS Backlight LCD Mod+Printed Zelda Shell For Gameboy Advance

Note: You don’t need to cut the shell if you buy the shell from us. Otherwise, you need to

cut the shell by yourself.

The Glass screen lens has the LOGO.

Integer Scaling. No any distortions.

Add FRM On/OFF function(Frame blending  On/OFF).

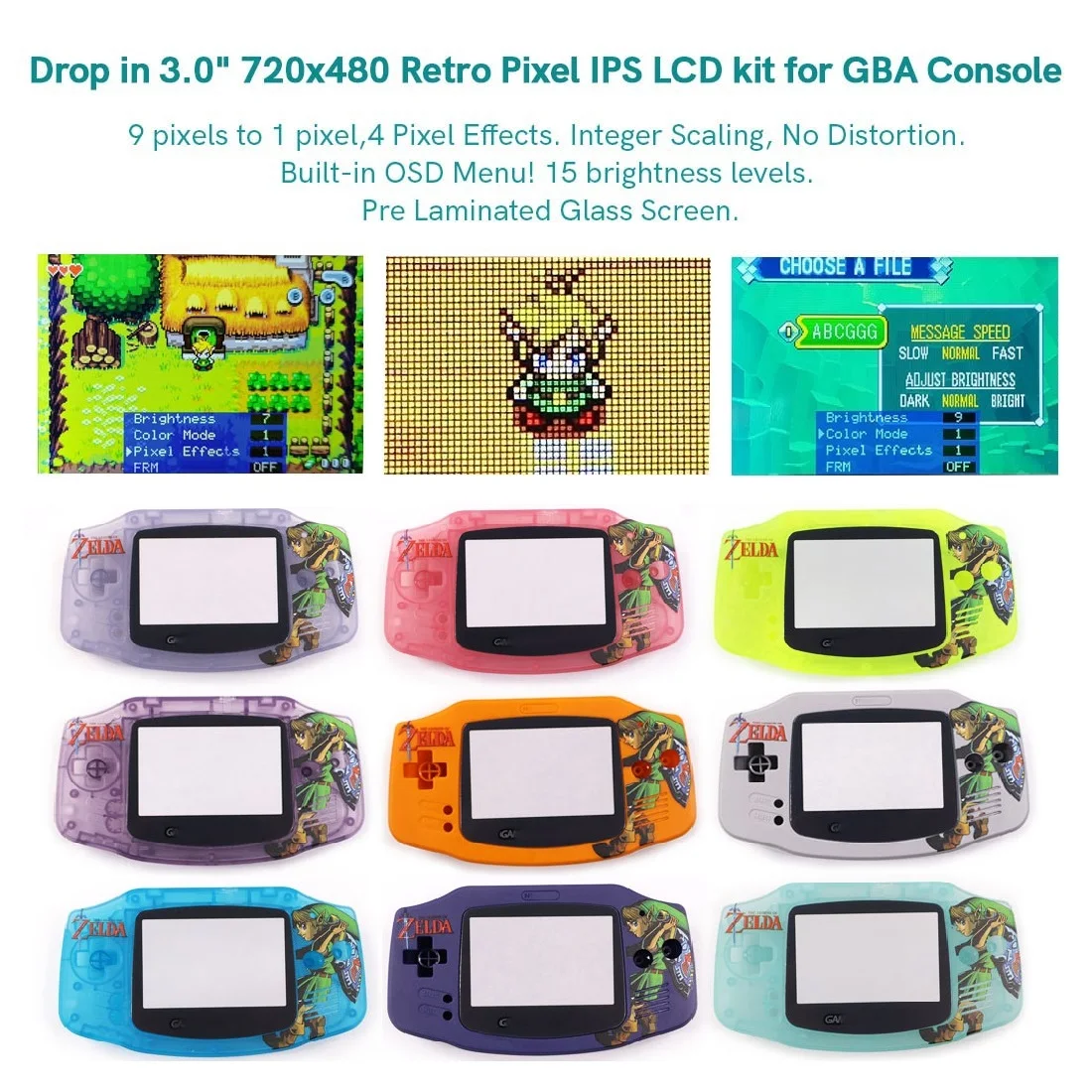

New GBA Laminated HD LCD IPS Backlight Screen Mod Kit V5 + Zelda Series Customized Housing Case Shells, 720×480 Retro Pixel 9 to 1 Display Glass Screen Lens OSD Menu 15 Adjustable High Brightnes Full Set Accessories Description:



1. 720×480 display resolution. HD LCD.  9 pixels to 1 pixel. Integer scaling. No any distortions.

2. Wide View angle up to 178 degree.

3. Pre-Laminated Glass Screen.

4. The PCB has been embedded in the LCD metal shell.

5. Built-in OSD Menu!

6.  Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1 and Scanline 2.

7. 15 brightness levels.

8. 8 color modes.

9.  FRM On/OFF function(Frame blending  On/OFF) is included.  For  some extremly few games,  the image effect will be better when FRM  turned on. For most games, No need to turn on FRM  Function. The default FRM is OFF.

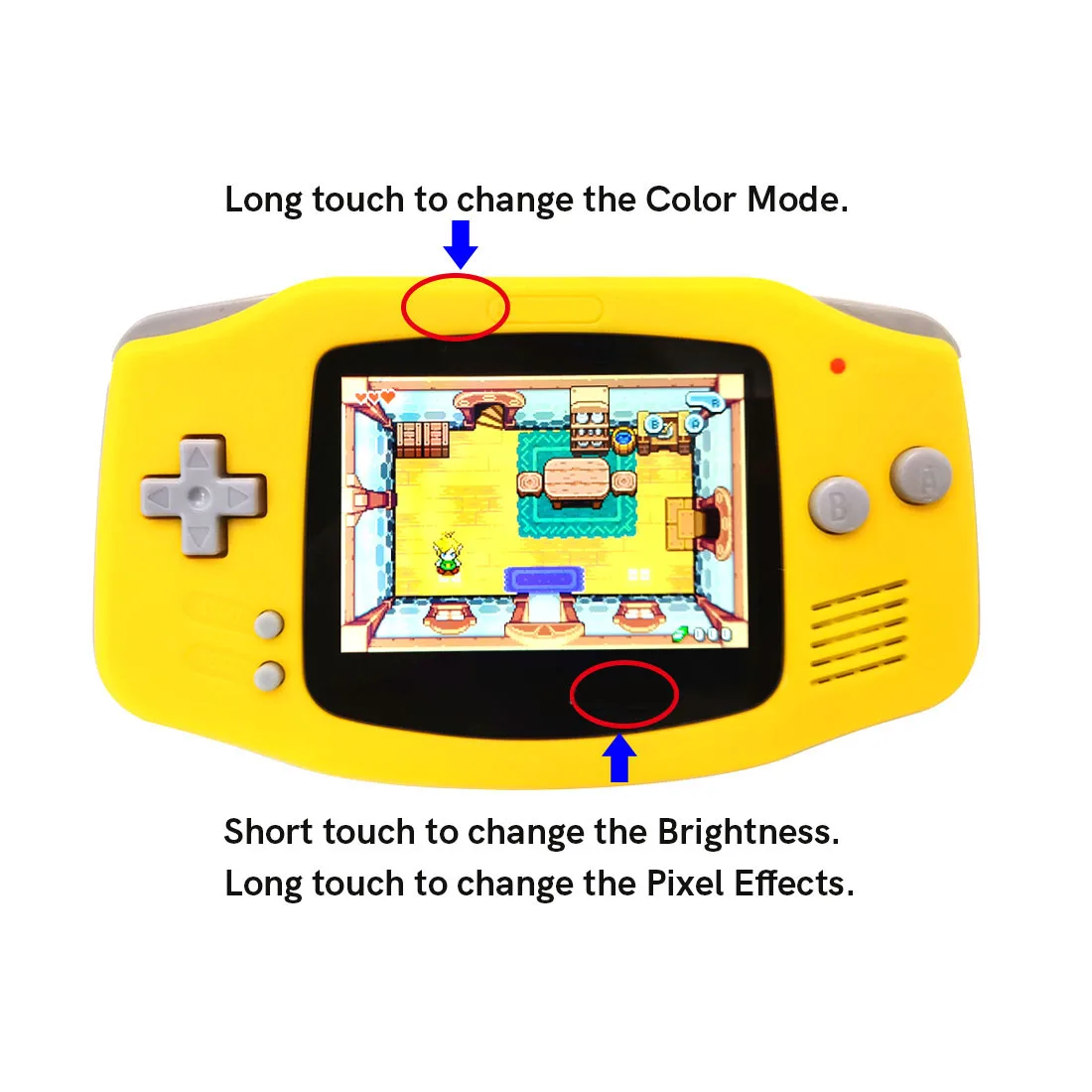

10. Touch Screen to change the brightness and the color modes.

11. Compatible 32 pin and 40 pin motherboard.



*You need to welding 3 wires to control the OSD Menu*

OSD Menu Operation:

-Press the Select+L+R buttons for 1 second at the same time, then release the buttons to activate the OSD Menu.

-Press the Select button to select the adjustment item when OSD Menu activated.

-Press the L or R button to adjust the item when OSD Menu activated.



You don’t need to do any welding if you don’t want the OSD menu!



1x Pre-Laminated IPS LCD, 2x Screwdrivers, 3x red wires, 2x ribbon cables

Or:

1x Pre-Laminated IPS LCD, 2x Screwdrivers, 3x red wires, 2x ribbon cables, 1x UV printed shell case,

1 set buttons,1 set Rubber Pad, 1x Sticker label, 1 set screws
