GBA V4 Drop In IPS LCD Mod Kit 3.0 Inch Backlight High-Brightness Screen Pure Black Glass Lens, for Nintendo Gameboy Advance, with Housing Case No Need to Cut Shell, 720×480 Display Retro Pixel w/ OSD Menu Supports 32pin / 40pin

V5 Drop In 3.0″ Hightlight 720×480 Retro pixel IPS LCD kit for GBA Advance.

No need to cuttting the shell case. Keep it original.

10 brightness levels. Easy install.

And the Glass screen lens have the LOGO.

No need to cutting the shell case. Just Drop the LCD into the shell case.



NOTE! The item not included motherboard.

NOTE!  The item not included GB console

Note:   The V4 Drop in 3.0”Upgrade to V5,  We will send V5 720x480IPS LCD to you



GBA V4 Drop In IPS LCD Mod Kit 3.0 Inch Backlight High-Brightness Screen Pure Black Glass Lens, for Nintendo Gameboy Advance, with Housing Case No Need to Cut Shell, 720×480 Display Retro Pixel w/ OSD Menu Supports 32pin / 40pin Descriptions

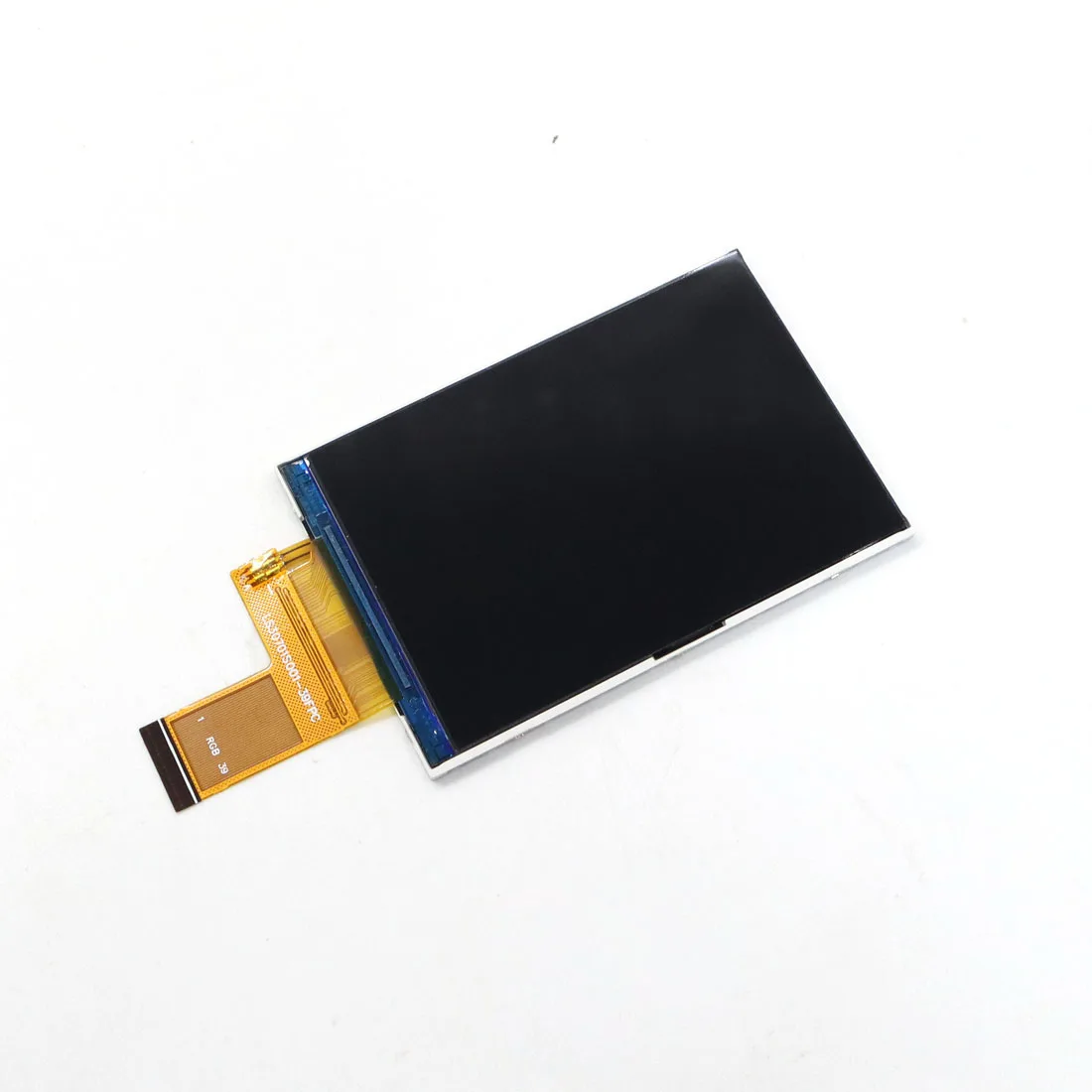

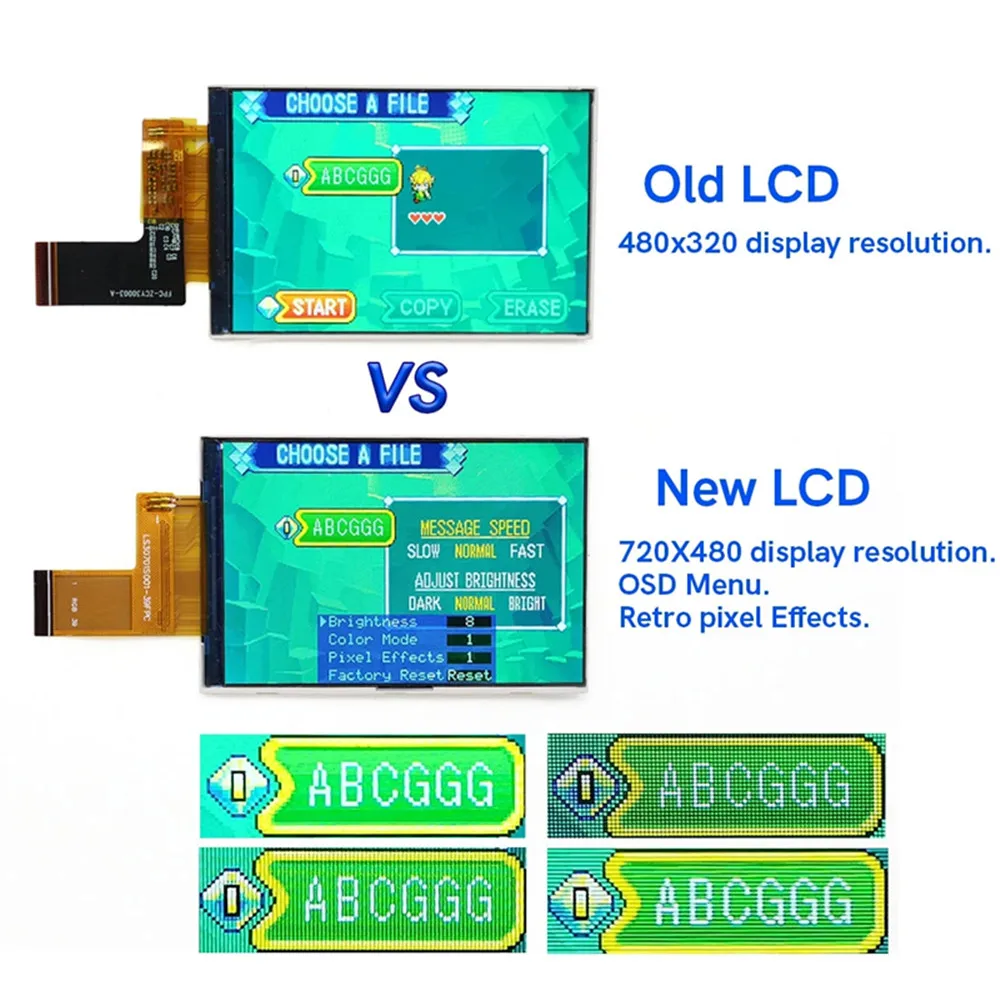

1. 720×480 display resolution. HD IPS LCD. 9 pixels to 1 pixel.

2. Wide View angle up to 178 degree.

3. Drop in IPS LCD for GBA. No need to cutting the shell case.

4. Same display size as the original LCD screen.

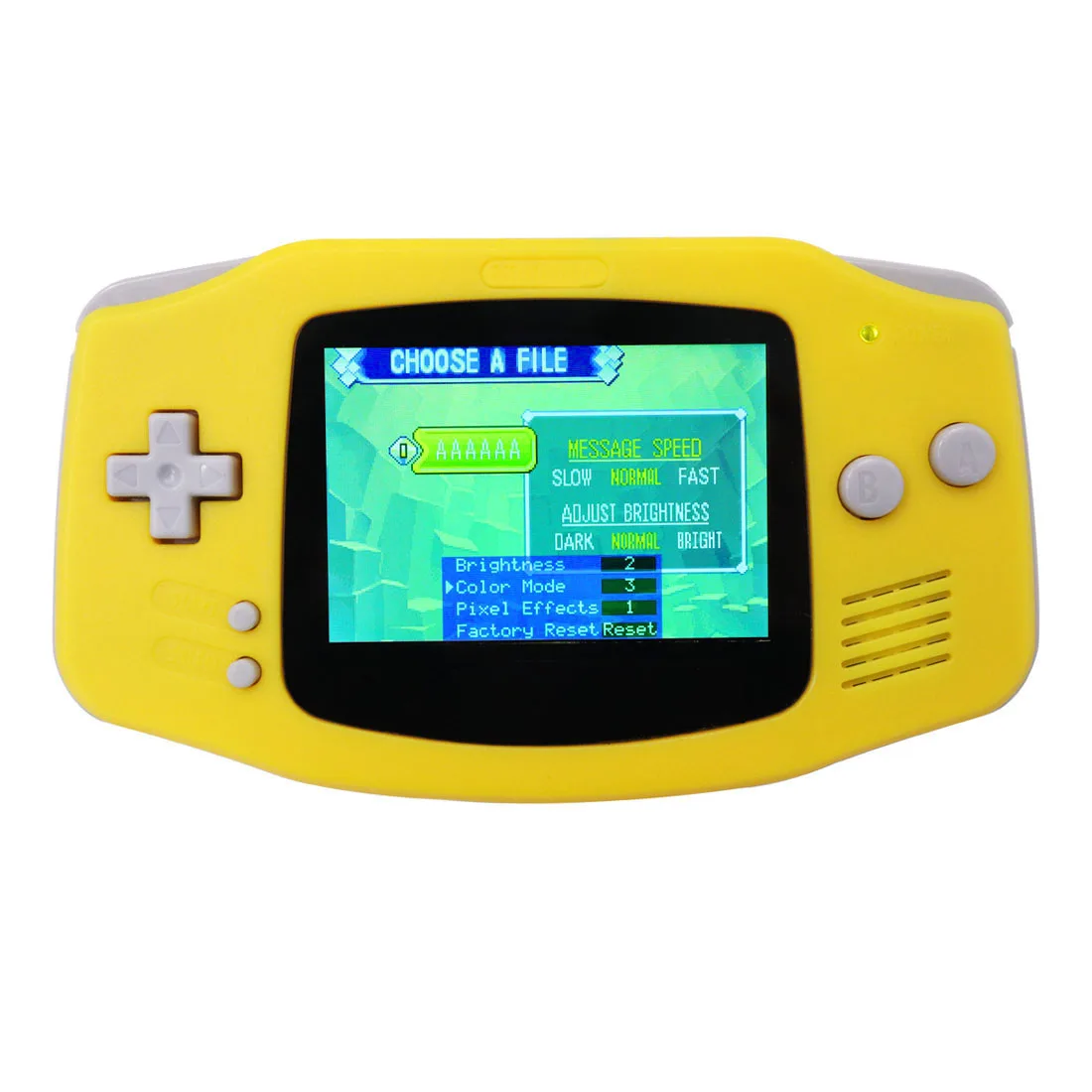

5. Built-in OSD Menu!

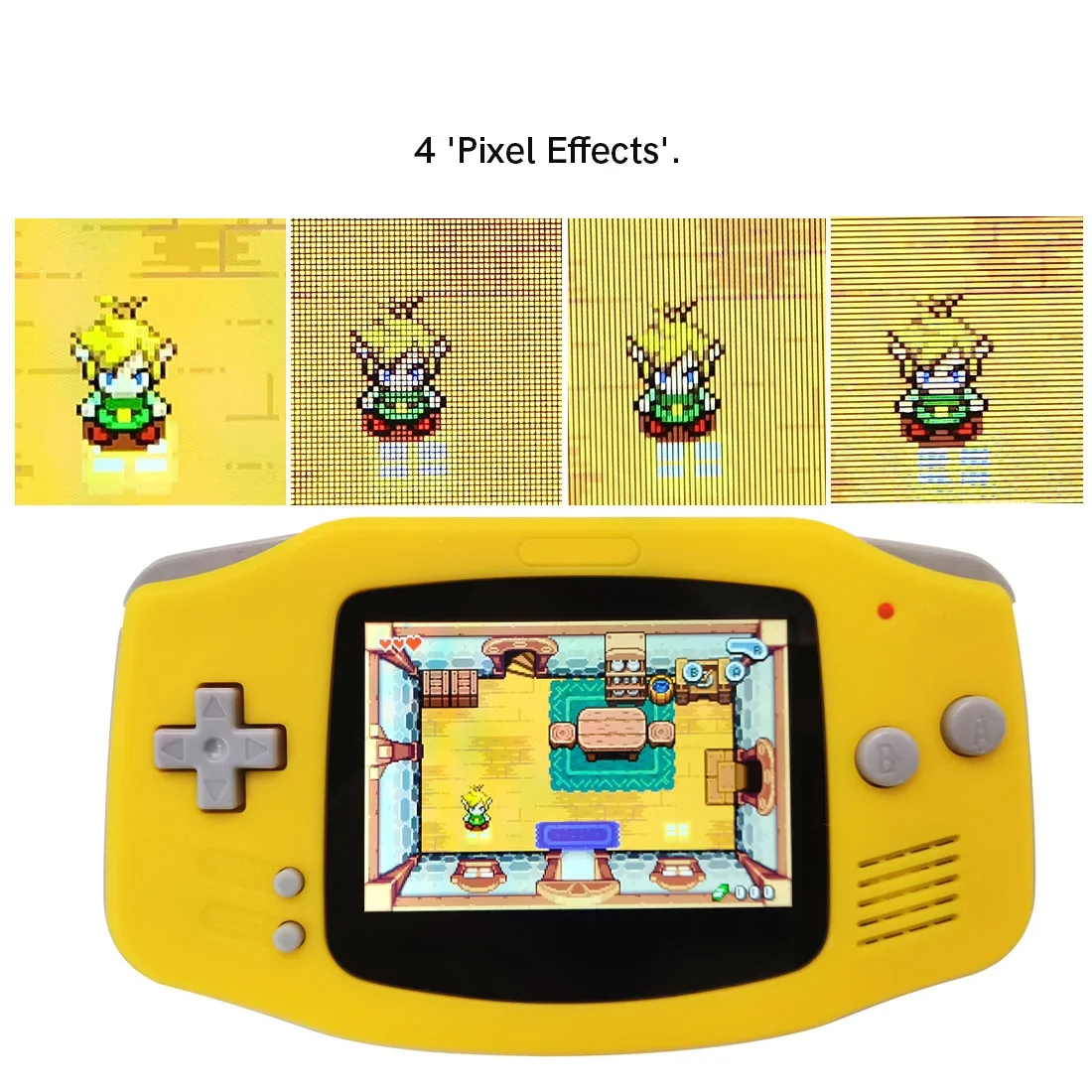

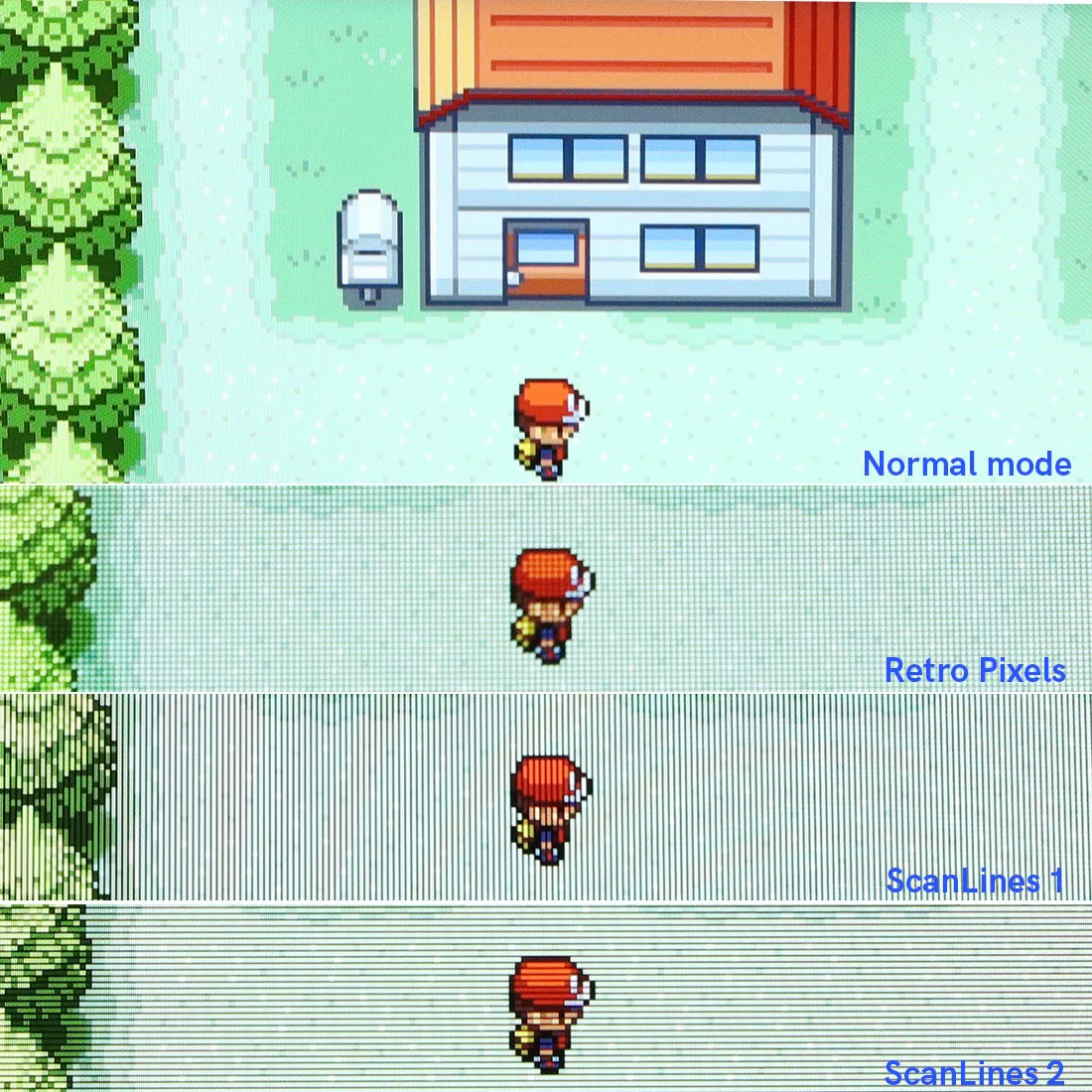

6. Retro pixel Effects: Normal, Retro pixel, Scanline 1, Scanline 2.

7. 15 brightness levels.

8. 8 color modes.

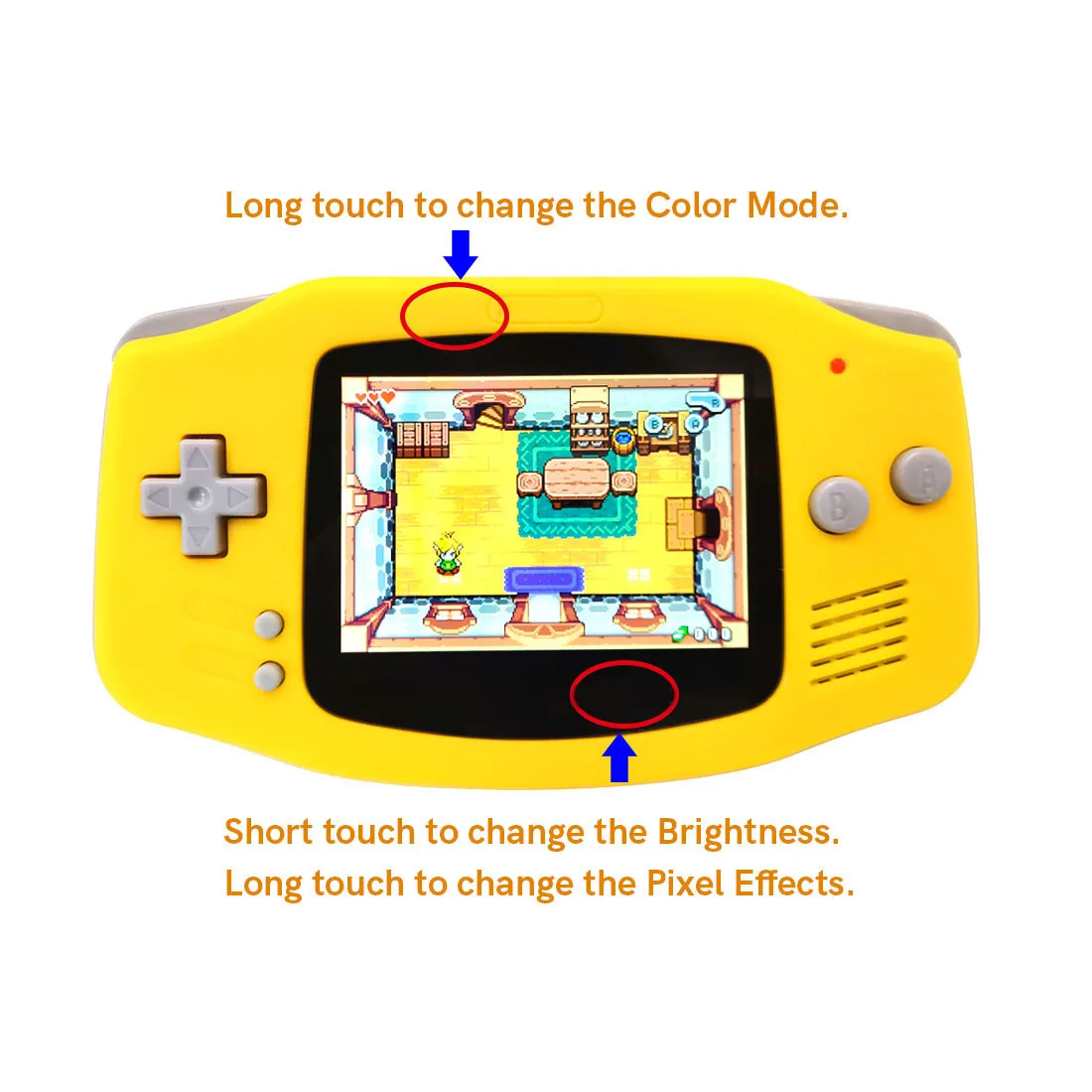

9. Touch Screen to change the brightness and change the color modes.

10. Compatible 32pin and 40pin motherboard.



You don’t need to do any welding if you don’t want the OSD menu!

*You need to welding 3 wires to control the OSD Menu*

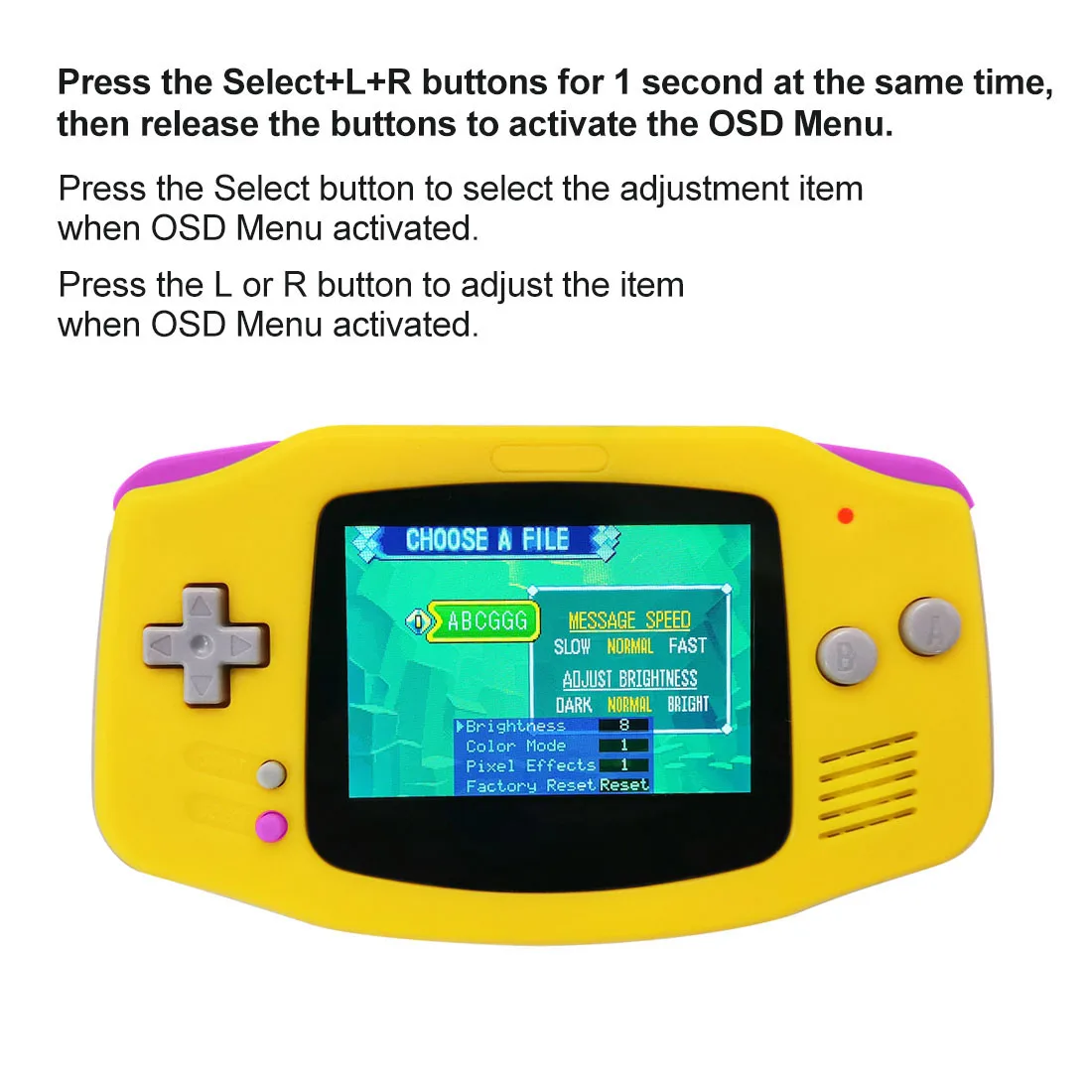

OSD Menu Operation:

-Press the Select+L+R buttons for 1 second at the same time, then release the buttons to activate the OSD Menu.

-Press the Select button to select the adjustment item when OSD Menu activated.

-Press the L or R button to adjust the item when OSD Menu activated.

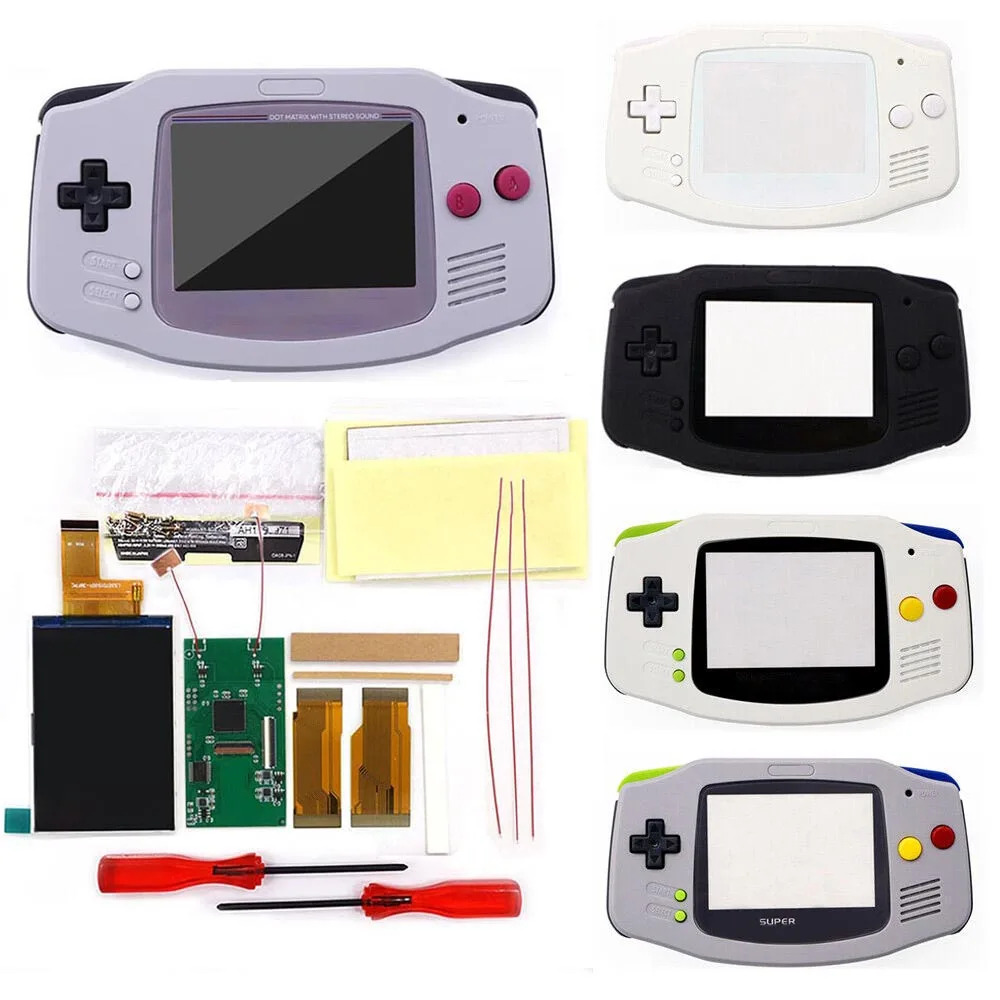

Packing including :



• 1x IPS LCD, 1XAdapter pcb, 1x Glass Screen lens,1xDouble-sided tape. 2x Screwdrivers, 2x Ribbion cable, 2x position stick.

• 1x IPS LCD, 1XAdapter pcb, 1x Glass Screen lens,1xDouble-sided tape. 2x Screwdrivers, 2x Ribbion cable, 2x position stick.. 1x Shell case, 1 set buttons, 1 set Rubber Pad, 1x Sticker label,1 set screws,

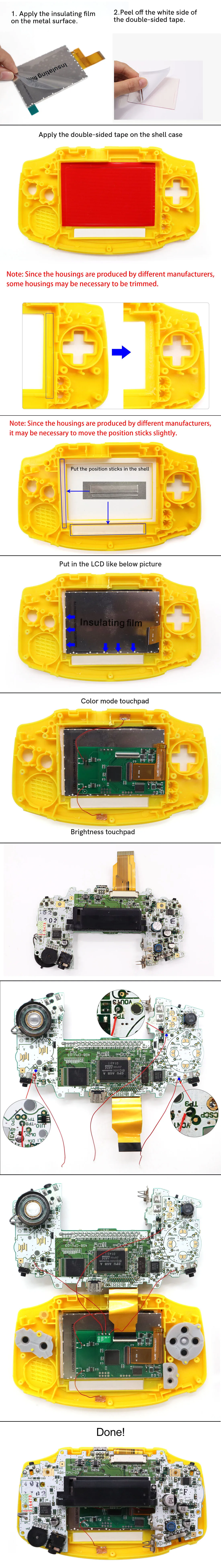

instruction：







GBA V4 Drop In IPS LCD Mod Kit 3.0 Inch Backlight High-Brightness Screen Pure Black Glass Lens, for Nintendo Gameboy Advance, with Housing Case No Need to Cut Shell, 720×480 Display Retro Pixel w/ OSD Menu Supports 32pin / 40pin x1
