DIY 40pin 40 Pin GBA Two Wire HDMI Mod internal HDMI out Modded For Game Boy Advance Console Adapter HDTV Converter

All items are carefully tested before ship.

Consoles are not included.

The LCD is not included.

This is the internal HDMI out mod for the GBA and is electrically compatible with AGS 001 LCD, AGS 101 LCD, GBA IPS Flex cable V2 flex cable version.

It can not support GBA IPS backlight LCD PCB version as the space left for the installation is too few.

This list can only support 40 pin GBA  console. It can not be compatible with 32 pin GBA console .

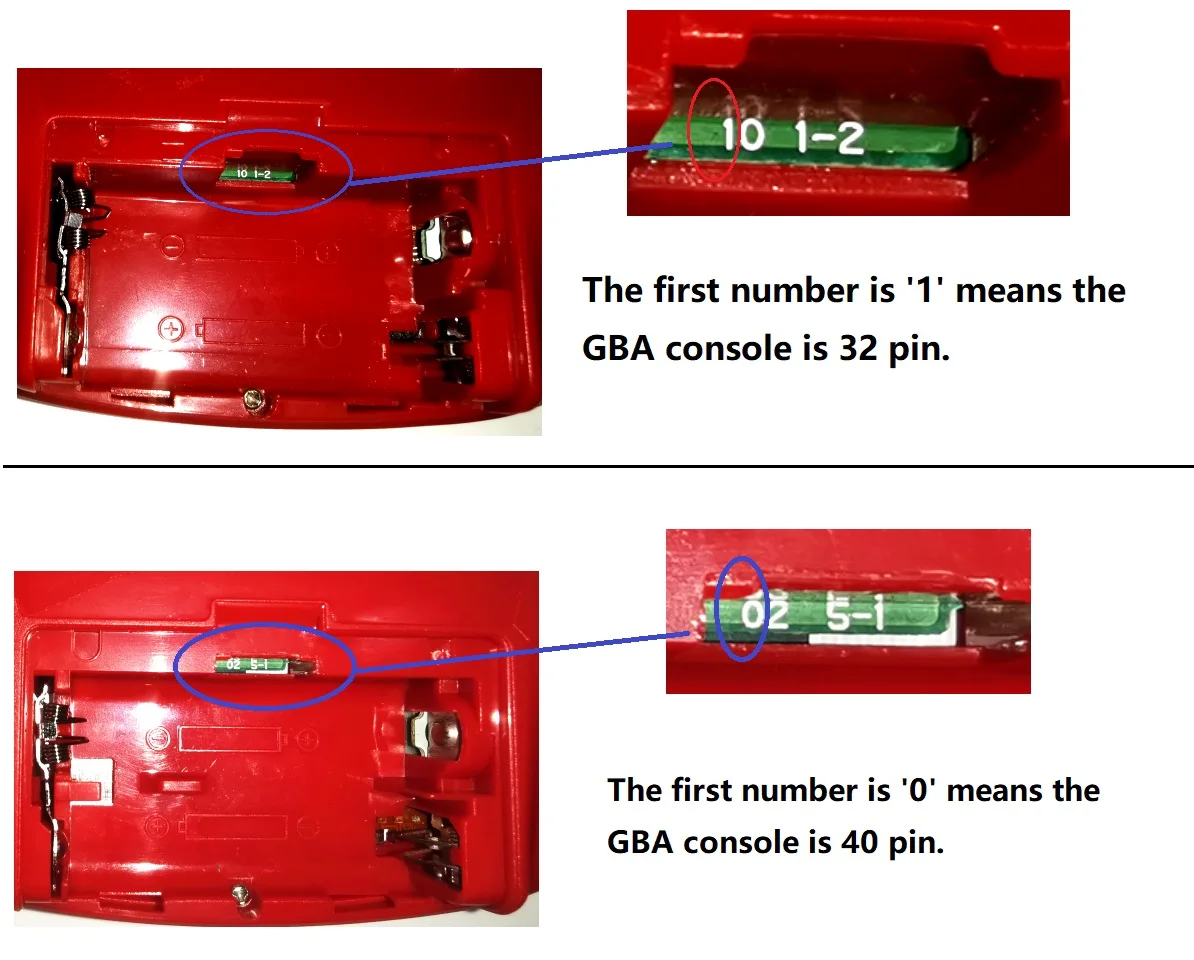

How to distinguish between 32pin GBA and 40pin GBA

Make your GBA console support play games on TV set.

Image output via Micro HDMI port.

Easy swap the display method. Plug in the ‘Micro HDMI Adapter’ to play games on TV set. Pull out the ‘Micro HDMI Adapter’ to play game on LCD.

1. Support the Video and Audio play on TV set.

2. Support two GBA consoles play games on TV set(You need to have a GBA link cable).

3. Easy to install, only need to cut the shell case a little.

4. This HDMI port is added without marks which looked like it just had exist before.

5. Upgrade your GBA console to let it can play games on TV set.

6. Support normal AGS 001 LCD GBA console.

7. Support AGS-101 backlight LCD modified GBA console.

8. Support ‘IPS V2 backlight LCD flex cable version’ modified GBA console.

———————————-

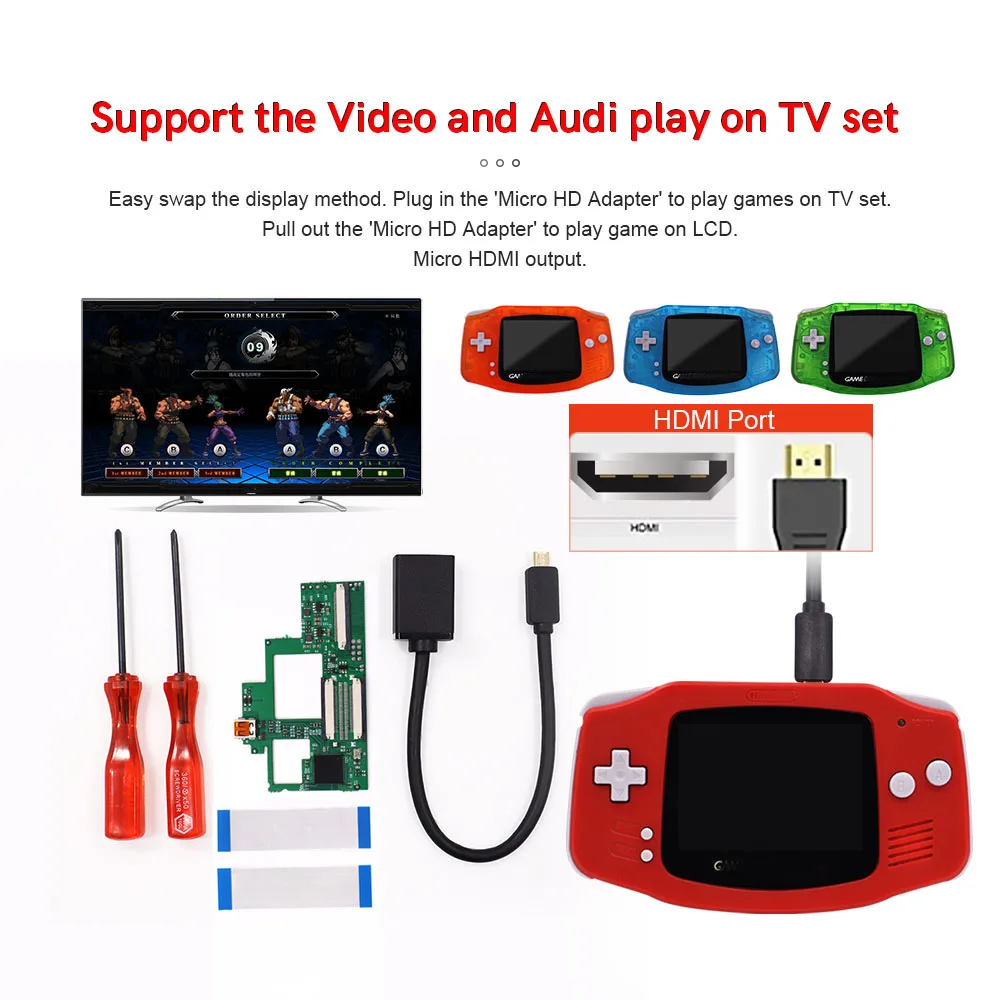

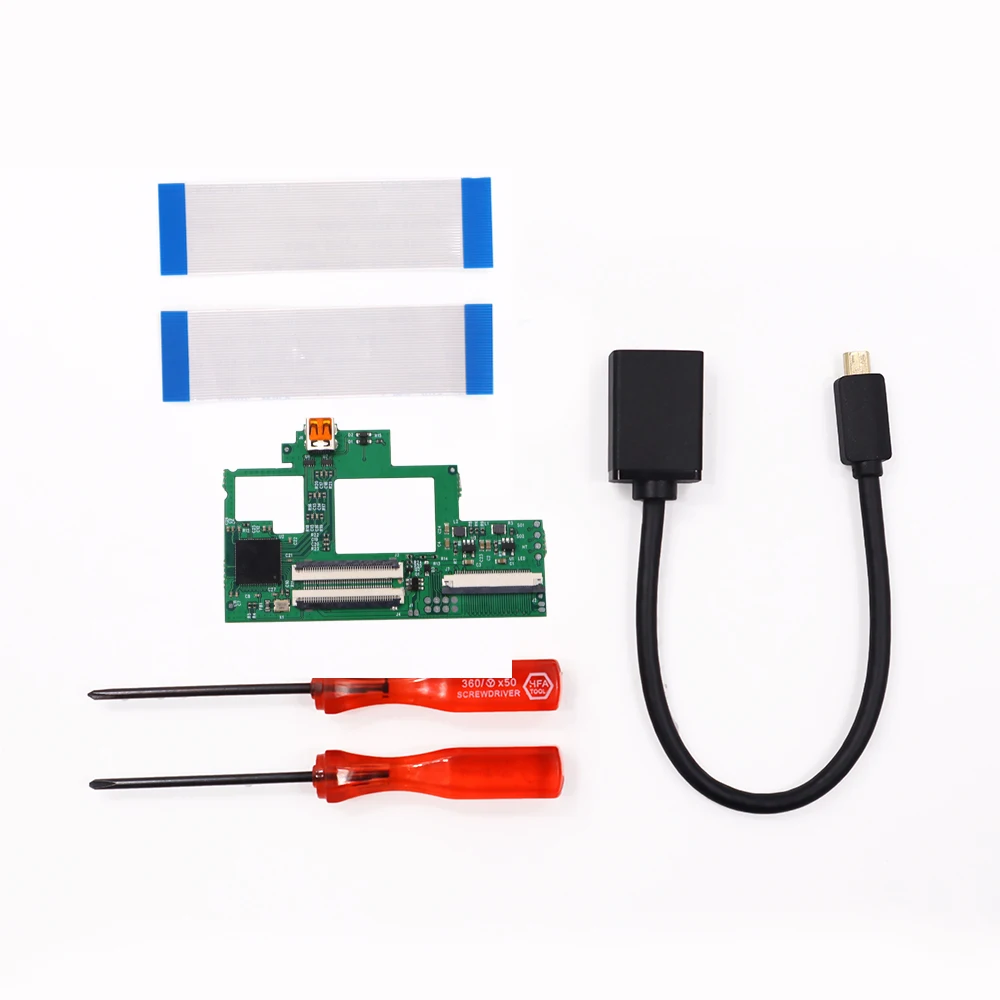

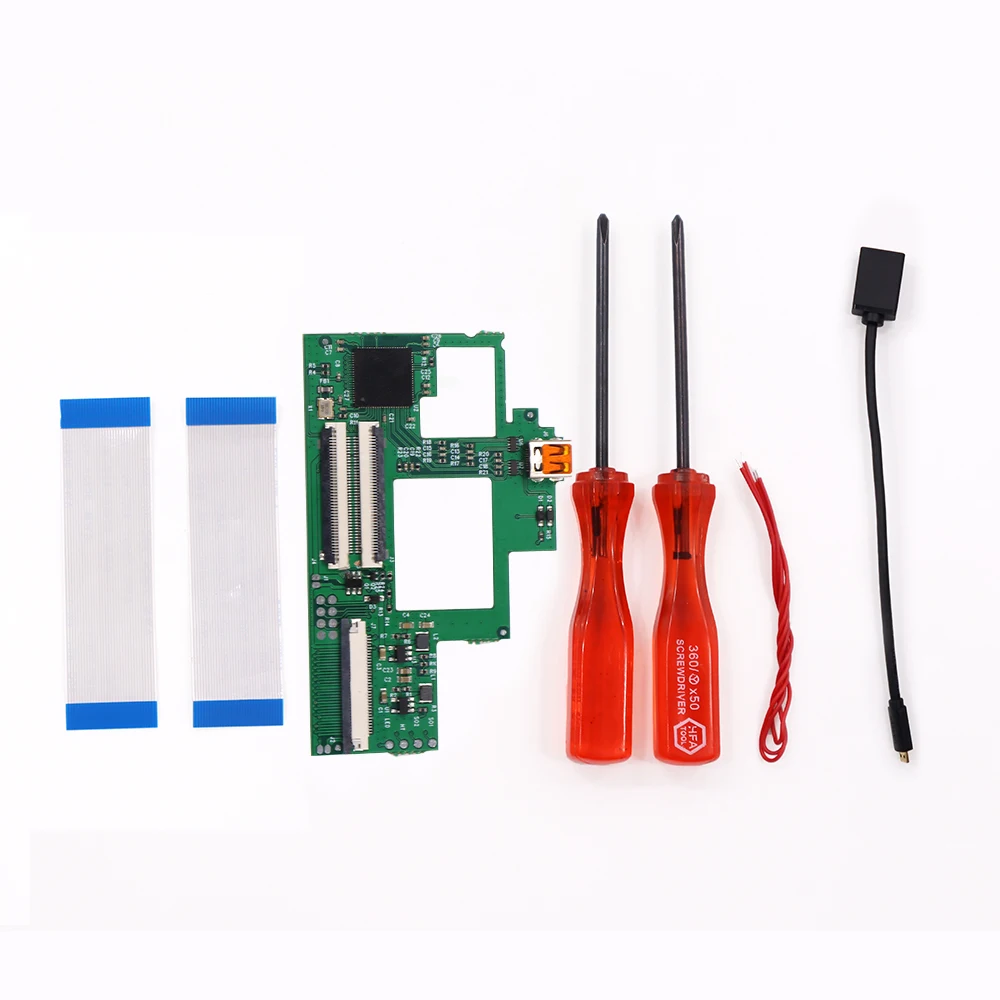

Packing including :

1x GBA HDMI adapter PCB board.

1x micro HDMI to HDMI converter cable.

2x ribbon cable.

2x screwdrivers

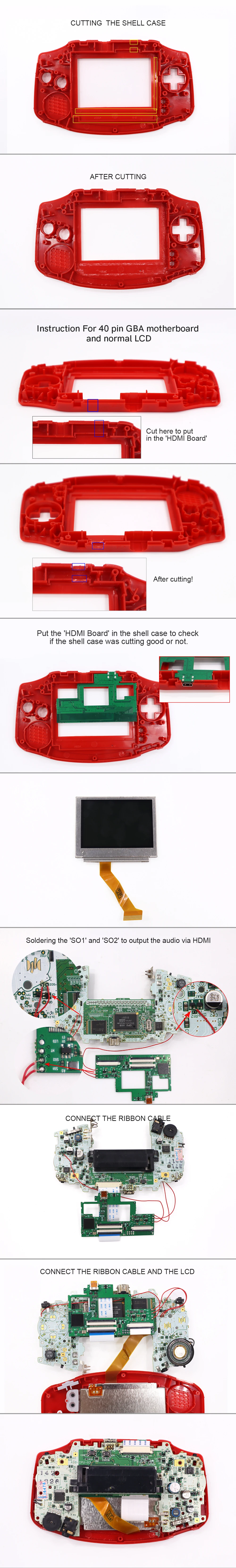

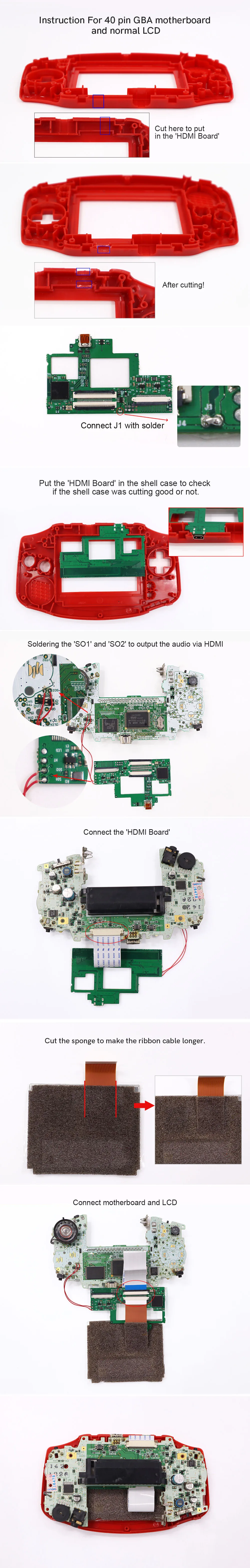

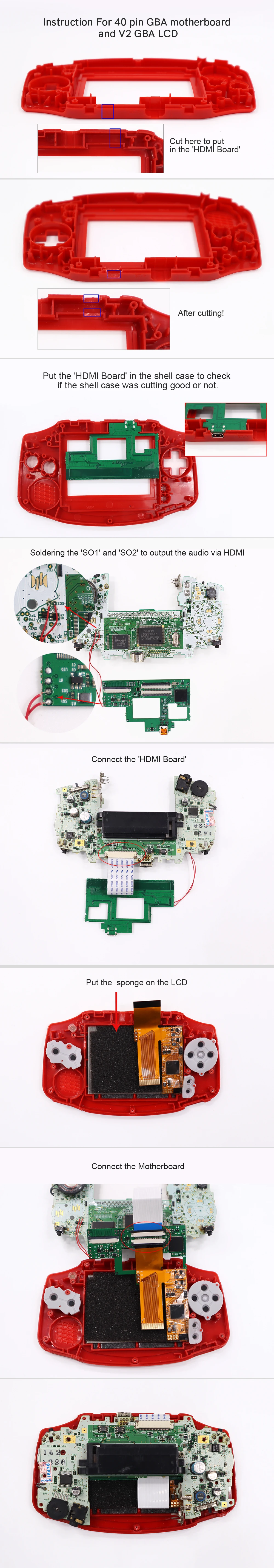

Installation guides for 40 pin  GBA AGS 001 LCD console
