Brand New GBA SP White V5 IPS Laminated LCD Screen Mod Kit For Nintendo Gameboy Advance SP 720×480 HF Drop in Backlight Display Module + Custom Housing Case Shells Full Set NO CUT / SOLDER Requried Spare Parts Accessories

White V5 720×480 Drop in Laminated GBA SP IPS LCD Backlight Kits for GameBoy Advance SP Housing Shell

Brand New GBA SP White V5 IPS Laminated LCD Screen Mod Kit For Nintendo Gameboy Advance SP 720×480 HF Drop in Backlight Display Module + Custom Housing Case Shells Full Set NO CUT / SOLDER Requried Spare Parts Accessories Description:

1. 720×480 display resolution. HD LCD. 9 pixels to 1 pixel. Integer scaling. No any distortions.

2. Wide View angle up to 178 degree.

3. Pre Laminated Glass Screen.

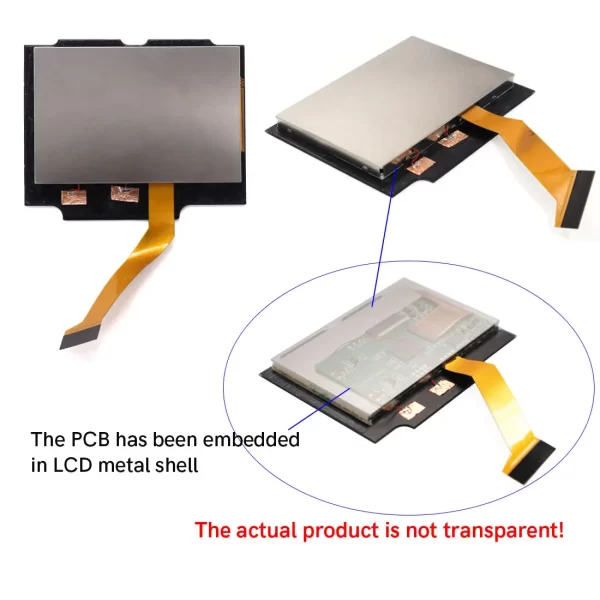

4. The PCB has been embedded in the LCD metal shell.

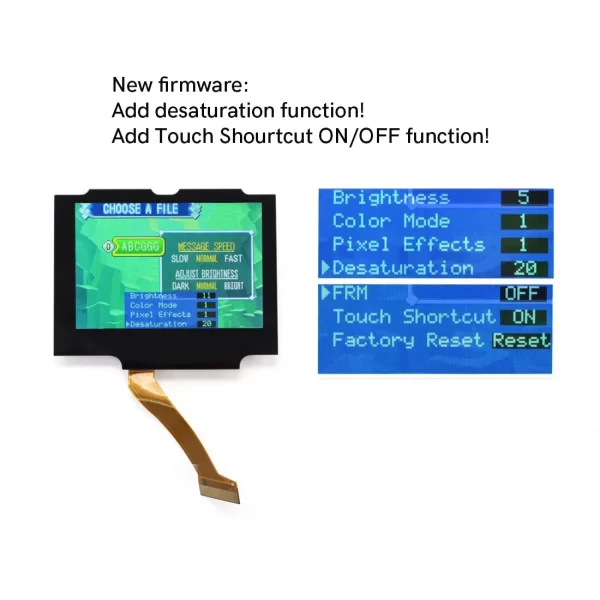

5. Built-in OSD Menu!

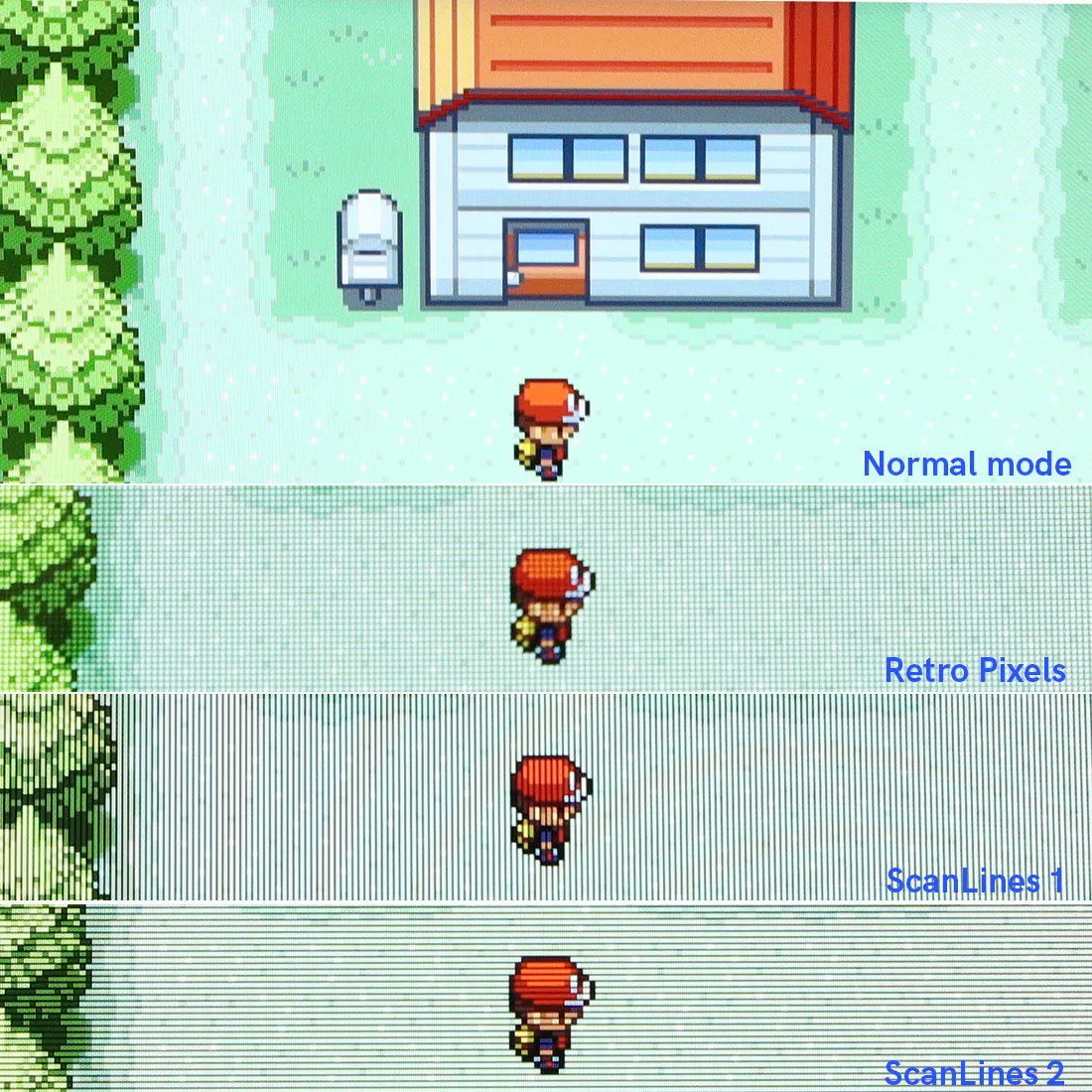

6. Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1 and Scanline 2.

7. 15 brightness levels.

8. 8 color modes.

9. FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.

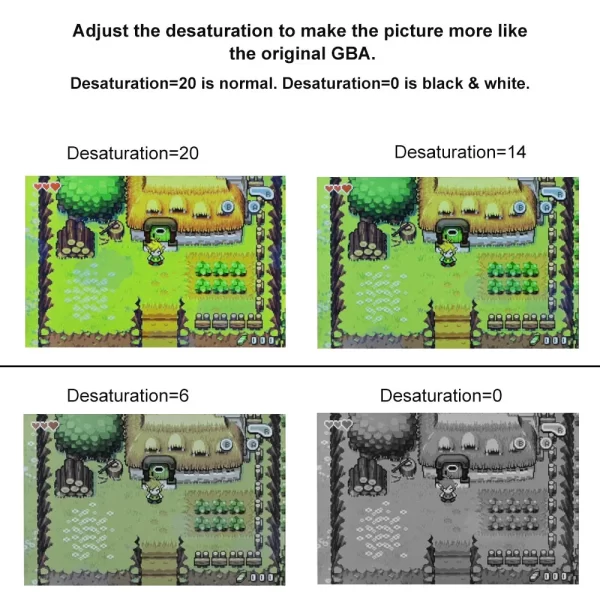

10. Add Desaturation. This function can make the color of IPS LCD images closer to the original color of GBA games. Note: ‘Desaturation’ can only be adjustable in normal color mode.

11. Touch Screen to change the brightness and the color modes.

12. Touch Shourtcut ON/OFF. You can set ‘Touch Shourtcut’ OFF to avoid auto cycling colour modes

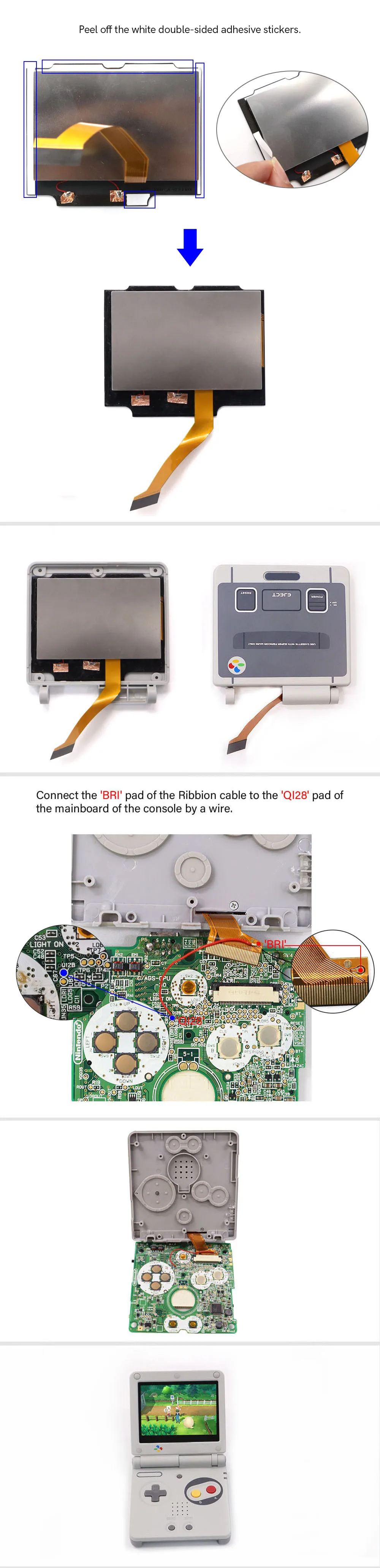

*You need to welding 1 wire to control the OSD Menu*

The ‘Brightness’ button can activate the OSD Menu after welding 1 wire.



Operation:

Short press the ‘Brightness’ button to change the brightness.

Press the ‘Brightness’ button 5 seconds to activate the OSD Menu.

Long press the button to select the adjustment item when OSD Menu activated.

Short press the button to adjust the item when OSD Menu activated.

Packing including :

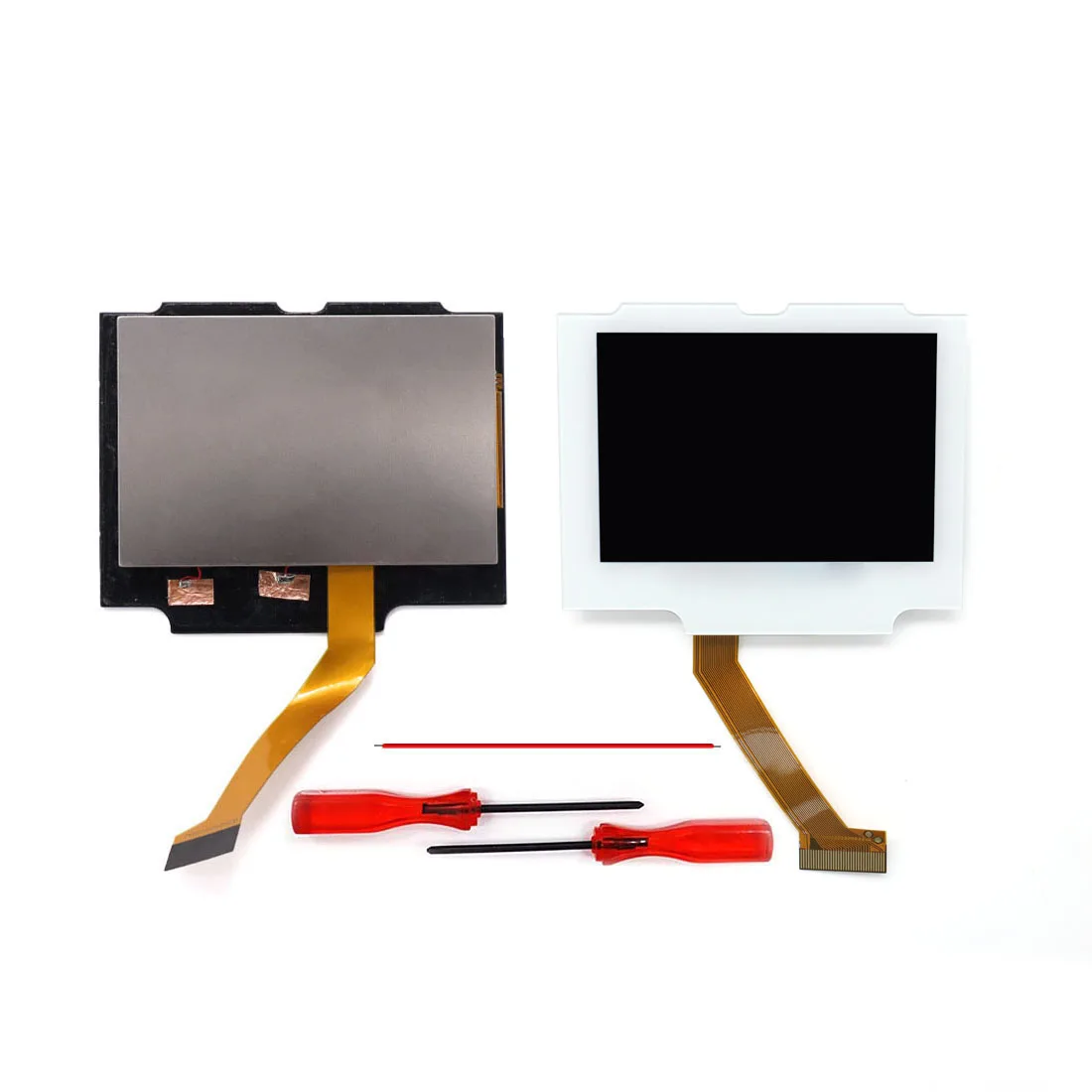

• 1x IPS LCD, 2x Screwdrivers, 1x red wire.

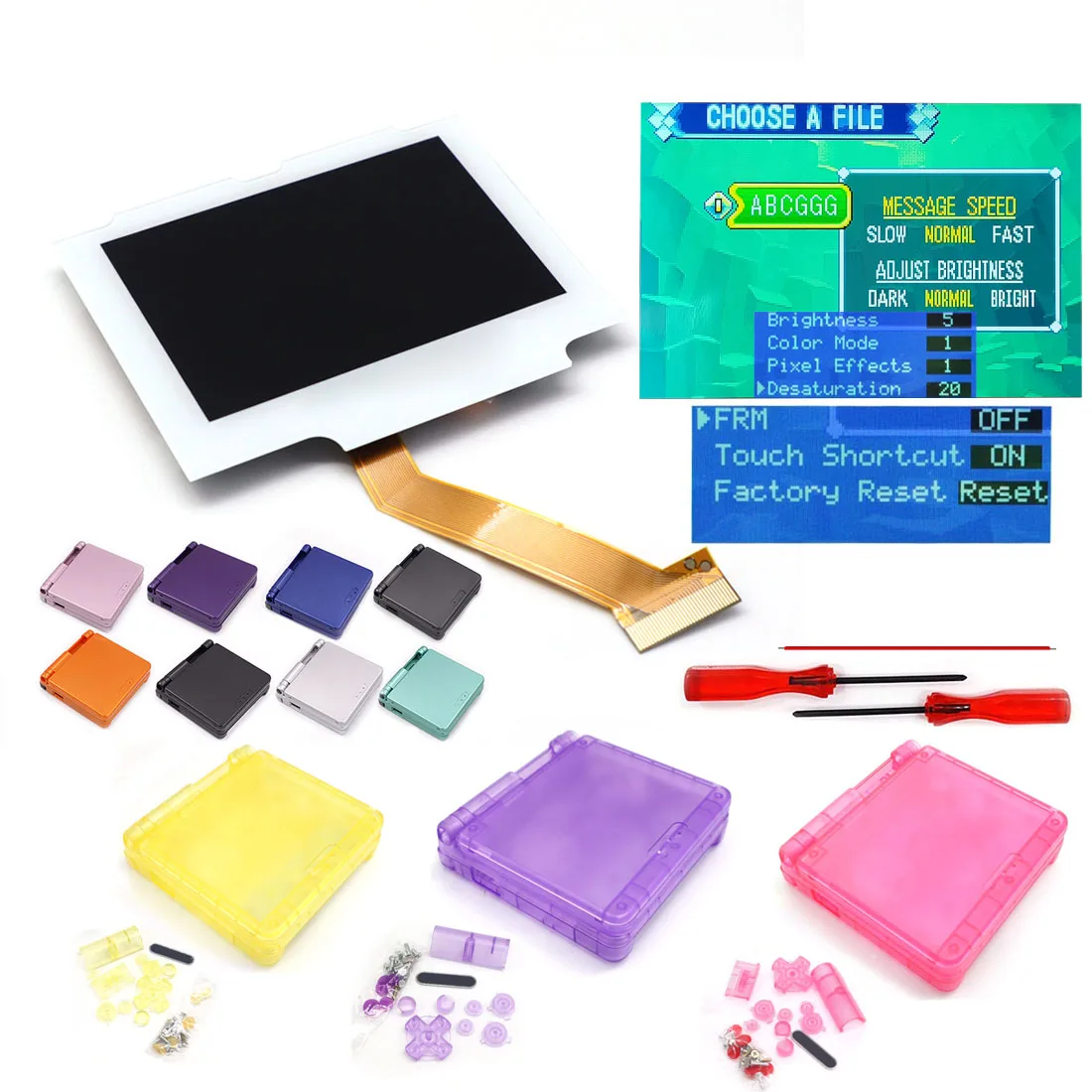

• 1xIPS LCD, 2x Screwdrivers, 1x red wire, . 1x Shell case, 1 set buttons, 1 set Rubber Pad, 1x Sticker label,1 set screws,

Instruction



Brand New GBA SP White V5 IPS Laminated LCD Screen Mod Kit For Nintendo Gameboy Advance SP 720×480 HF Drop in Backlight Display Module + Custom Housing Case Shells Full Set NO CUT / SOLDER Requried Spare Parts Accessories x1
